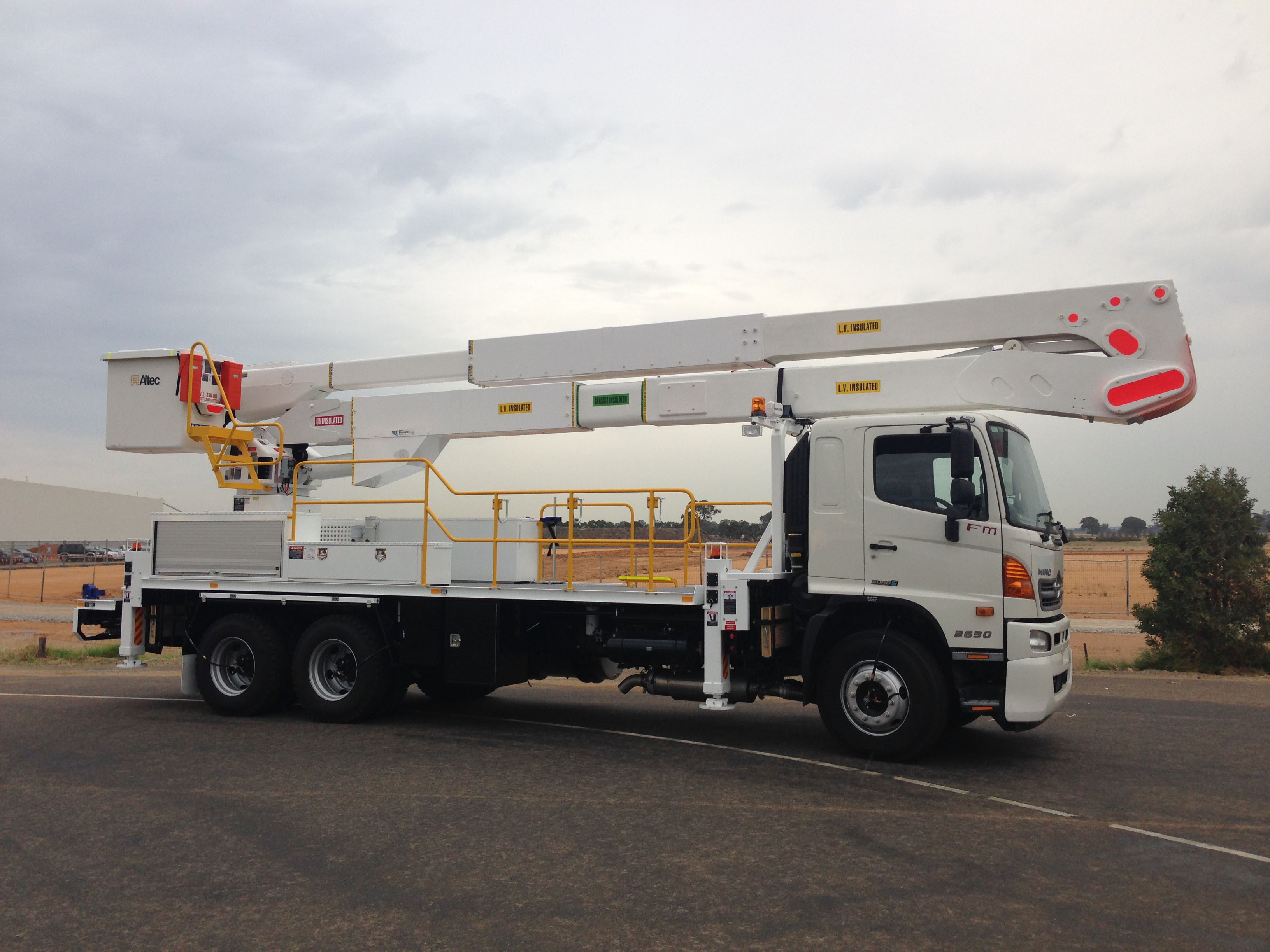

A77T

Articulating Telescopic Elevated Work Platform

Altec’s A Class offers supreme performance and reliability. Material handling comes standard with this unit, meaning greater versatility and improved OHS operations. The A77T features a working height of 24.8 m and a side reach of 14.2 m.

Request a Quote





General Specifications:
Ground to Bottom of Bucket 23.3 m
Working Height 24.8 m
Maximum Reach 14.2 m
Bucket Capacity 350 kg
Upper Boom Articulation 0° to +165°
Lower Boom Articulation 0° to +93°
Rotation Continuous
Standard Features:
Features:
  • Articulating/Telescopic EWP
  • Altec ISO-Grip® Single Hand Control
  • Insulation per AS1418.10 – 2011, 66kV (ext.)/33kV Dry & 33kV/33kV Wet
  • Insulation up to 500 kV
  • 90 Degree Bucket Rotator
  • 2 Person Bucket
  • Material Handling Capacity flat rated at 450 kg (in all positions)
  • Bucket Access from the Ground
  • Automatic Upper Boom Stow Latch
  • 2 Tool Circuits at Bucket
  • Secondary Stowage System
  • Powder-Coated Steel Structures
  • Designed in ISO 9001 Certified Facility
  • Lifetime Structural Warranty
Optional Features:
Options:
  • Custom Layout, Lockers, and Accessories
  • Comprehensive Range of Tools and Equipment
  • CAT ‘A’ Electrical Rating For Bare Hand Work
  • Various Bucket Configurations
